Roof Fastener and Nailing Code in Georgia
IRC Section R905.2.5 governs every nail that holds your shingles in place. This guide covers nail length, gauge, head diameter, 4-nail vs. 6-nail patterns, pneumatic nailer depth settings, and the staple restrictions that affect Georgia roofs.
Certified by Industry-Leading Manufacturers
IRC R905.2.5 Roofing Fastener Requirements
Georgia regulates roofing fasteners through the International Residential Code (IRC), adopted with state-specific amendments by the Georgia Department of Community Affairs (DCA). Section R905.2.5 is the controlling code section for fasteners used to attach asphalt shingles to the roof deck. It specifies nail dimensions, material, deck penetration depth, and the relationship between fastener patterns and wind resistance ratings.
Fastener compliance is the most inspected element of any shingle installation in metro Atlanta. Building inspectors in Gwinnett County, Fulton County, DeKalb County, and Cobb County check nail type, length, placement, depth, and quantity during the final roof inspection. Incorrect fasteners are the single most common reason for failed roofing inspections across these jurisdictions.
The code works with two other systems. First, it connects to IRC Table R905.2.4.1, which links design wind speed to the required number of nails per shingle. Second, it connects to manufacturer installation instructions (incorporated by reference through IRC R905.2.6), which specify the nailing zone location on each shingle product. A compliant installation must satisfy the IRC nail specifications, the correct nail count for the wind zone, and the manufacturer's nailing zone placement.
For the broader context of Georgia's roofing code framework, see our Georgia residential roofing code guide. For wind rating requirements that determine nail count, see our wind speed requirements page. For shingle installation standards that connect to fastener requirements, see our asphalt shingle code page.
Nail Dimensions, Material, and Penetration Requirements
IRC R905.2.5 establishes minimum specifications for roofing nails used with asphalt shingles. Every nail on a Georgia roof must meet these thresholds.
Physical Specifications
| Nail Property | Minimum Requirement | Purpose |
|---|---|---|
| Shank gauge | 12-gauge (0.105" diameter) smooth shank; 13-gauge for ring-shank | Pullout resistance against wind uplift |
| Head diameter | 3/8 inch (0.375") | Prevents nail head from pulling through shingle mat |
| Deck penetration | 3/4 inch through deck, or full thickness if deck is under 3/4" | Anchoring strength in substrate |
| Material | Corrosion-resistant steel, stainless steel, or copper | Prevents rust failure over roof service life |
Nail Length by Application
The code specifies deck penetration depth, not nail length. But the penetration requirement determines the nail length needed for each application type:
- New construction (bare deck): A 1.25-inch (1-1/4 inch) nail penetrates standard 7/16-inch or 1/2-inch OSB or plywood by at least 3/4 inch after passing through one layer of shingles and one layer of underlayment. This is the standard nail length for new roof installations in metro Atlanta.
- Reroofing over existing shingles: A 1.75-inch (1-3/4 inch) nail penetrates through the new shingle, the old shingle layer, the underlayment, and into the deck by at least 3/4 inch. Georgia code permits reroofing over one existing layer of asphalt shingles. The reroofing code addresses when tear-off is required.
- Skip sheathing (older homes): Longer nails may be needed to achieve proper penetration into 1x4 or 1x6 board decking. The contractor must verify penetration depth on the first few courses and adjust nail length if needed.
Corrosion Resistance
Georgia's humid subtropical climate accelerates metal corrosion. A standard bright steel nail will rust within 2 to 3 years in exposed conditions. Roofing nails must be galvanized (hot-dipped or electro-galvanized), stainless steel, or copper. Hot-dipped galvanized nails carry a thicker zinc coating than electro-galvanized nails and provide longer corrosion resistance. For a 30-year shingle system, hot-dipped galvanized nails are the minimum standard.
.jpg)
Four-Nail vs. Six-Nail Patterns
The number of nails per shingle connects directly to the wind resistance rating claimed for the installation. IRC Table R905.2.4.1 establishes the relationship between design wind speed, shingle wind classification, and required nail count. Metro Atlanta sits in a 115 mph ultimate design wind speed zone, which requires either 4 or 6 nails depending on the shingle product and the wind rating claimed.
Standard Four-Nail Pattern
The standard fastener schedule for the 115 mph zone calls for four nails per three-tab or laminated shingle strip. Each nail goes in the manufacturer's designated nailing zone. On a standard laminated shingle (like GAF Timberline HDZ), the nailing zone is a narrow band approximately 5/8 inch to 1 inch above the bottom edge of the shingle overlap line. The four nails space at even intervals across the shingle width, positioned at the manufacturer's marked locations.
Four nails per shingle at the 115 mph wind speed produces an ASTM D7158 Class G (120 mph) or ASTM D3161 Class F (110 mph) wind resistance rating. This satisfies the minimum code requirement for metro Atlanta.
Enhanced Six-Nail Pattern
Six nails per shingle are required in these situations:
- Design wind speed above 120 mph: Coastal Georgia communities with design speeds of 121 to 150 mph require 6 nails per shingle under IRC Table R905.2.4.1.
- Manufacturer specification for higher wind rating: GAF requires a 6-nail pattern for Timberline HDZ shingles to achieve the published 150 mph Class H wind rating under ASTM D7158. With 4 nails, the same shingle carries a lower classification. The 6-nail pattern activates GAF's LayerLock technology, which bonds the shingle layers together at each nail point.
- Edge, corner, and hip/ridge zones: Building officials may require enhanced fastening in these zones where wind uplift pressures exceed the field area. The wind speed code page covers the zone designations.
| Wind Speed Zone | Nail Count | ASTM D7158 Rating | ASTM D3161 Rating | Metro Atlanta? |
|---|---|---|---|---|
| Up to 110 mph | 4 nails | Class D (90 mph) | Class A | No (below Atlanta) |
| 111 to 120 mph | 4 nails | Class G (120 mph) | Class F (110 mph) | Yes (standard) |
| 121 to 130 mph | 6 nails | Class G (120 mph) | Class F (110 mph) | No (coastal) |
| 131 to 150 mph | 6 nails | Class H (150 mph) | Class G/H | No (coastal) |
| Any (GAF HDZ with LayerLock) | 6 nails | Class H (150 mph) | Class F | Yes (recommended) |
Four nails meet code in metro Atlanta. Six nails unlock GAF's 150 mph Class H rating and LayerLock bond. The difference is two nails per shingle and decades of additional wind protection.

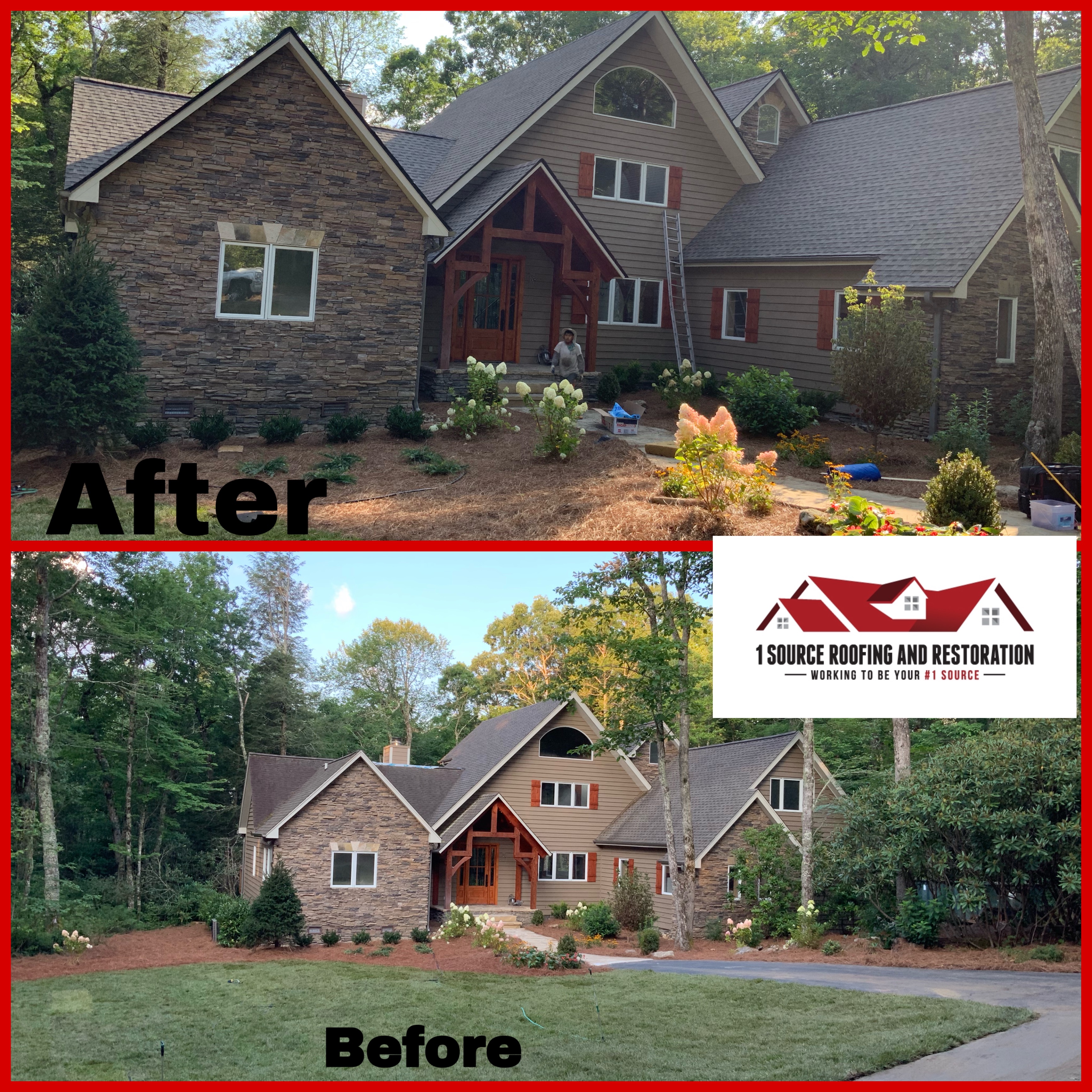

At 1 Source Roofing, we install GAF Timberline HDZ shingles with the 6-nail pattern as our standard. This provides the maximum wind resistance rating, activates the LayerLock technology, and qualifies for GAF's highest warranty tier. The material cost difference between 4 nails and 6 nails per shingle on a 30-square roof is approximately $15 to $25 in additional nails. The performance difference is substantial.
Need Shingles Nailed to Georgia Code?
1 Source Roofing uses 6-nail patterns with calibrated pneumatic nailers on every project. GAF Certified and CertainTeed Certified for full manufacturer warranty coverage.
Call (404) 277-1377Pneumatic Nailer Depth Settings and Hand Nailing
Most production roofing crews use pneumatic coil nailers for shingle installation. The nailer drives nails at a rate of 15 to 20 per minute per crew member, compared to 4 to 6 per minute for hand nailing. This speed advantage makes pneumatic nailers the standard tool on residential roofing projects. But the speed advantage creates a quality control challenge: nail depth.
Correct Nail Depth
The nail head must sit flush with the shingle surface. Not above it. Not below it. Flush. This is the single most important quality metric for shingle fastener installation. Both overdriven and underdriven nails create failure modes that compromise the roof system.
Overdriven Nails
An overdriven nail pushes the head below the shingle surface. The head tears through the fiberglass mat that gives the shingle its structural integrity. An overdriven nail loses approximately 50 percent of its holding power because the mat can no longer distribute wind uplift forces to the nail head. During a wind event, the shingle pulls free at overdriven nail locations while properly driven nails hold.
Underdriven Nails
An underdriven nail leaves the head standing above the shingle surface. The protruding nail head prevents the sealant strip on the overlying shingle from making full contact with the shingle below. Without sealant activation, the shingle tab does not bond to the course below it. Unbonded tabs lift in moderate wind and allow water beneath the shingle system. Underdriven nails also create a visible bump in the shingle surface that telegraphs through the overlying course.
Depth Adjustment Factors
Pneumatic nailer depth varies with several factors throughout the work day:
- Air compressor pressure: As the compressor cycles, air pressure fluctuates between the cut-in and cut-out settings. A nailer calibrated at peak pressure will overdrive nails when the compressor reaches its cut-in (lower) pressure. Crews must calibrate at the compressor's average operating pressure.
- Temperature: Asphalt shingles soften in heat and stiffen in cold. A nailer calibrated at 7 AM on a cool morning will overdrive nails at 2 PM when the roof surface exceeds 140 degrees.
- Hose length: Longer air hoses produce greater pressure drop at the nailer. Crews working far from the compressor may need higher regulator settings to maintain consistent depth.
- Deck condition: OSB and plywood offer different resistance to nail penetration. Old deck material may be softer than new sheathing. Crews must check depth when transitioning between deck materials.
Hand Nailing
Hand nailing eliminates the depth variability of pneumatic nailers. An experienced roofer driving nails with a roofing hatchet or hammer controls depth through feel and visual verification on every nail. Some manufacturer warranty programs accept both hand-nailed and pneumatic-nailed installations. Others (particularly for premium warranty tiers) may specify hand nailing in critical areas like eaves, rakes, and hips where wind uplift concentrates.
Hand nailing is slower and more labor-intensive. Most metro Atlanta residential projects use pneumatic nailers with depth verification throughout the day. The key is calibration, re-calibration, and crew discipline. A crew that checks depth on the first shingle of the day and never checks again will produce inconsistent results by afternoon.
Staple Restrictions and Underlayment Fastener Requirements
Staple Use in High-Wind Zones
The IRC permits staples for asphalt shingle attachment under specific conditions. Staples must meet minimum 16-gauge wire diameter and minimum 1-inch crown width. The deck penetration requirement matches nails: 3/4 inch or full deck thickness. Staples must be corrosion-resistant.
The practical reality eliminates staples from most Georgia installations:
- Manufacturer restrictions: GAF does not warranty shingles attached with staples. Period. CertainTeed limits staple use to specific products under specific conditions. A staple installation forfeits the manufacturer warranty that protects your investment.
- Wind performance: Staples contact the shingle mat along a narrow line (the crown width). Nails contact the mat across a circular head (3/8-inch diameter). The nail distributes uplift force over a larger area, producing higher pullout resistance per fastener. In the 115 mph wind zone, this difference matters.
- High-wind zone prohibition: Several Georgia coastal jurisdictions prohibit staples in enhanced wind zones above 120 mph. While metro Atlanta sits below this threshold, the prohibition reflects the engineering reality that staples provide inferior wind resistance.
At 1 Source Roofing, every shingle installation uses roofing nails. We do not use staples for shingle attachment on any project.
Underlayment Fastener Requirements
The underlayment code specifies separate fastener requirements for attaching underlayment to the roof deck. Standard felt underlayment (ASTM D226) requires tin caps or plastic cap nails to prevent the nail head from pulling through the felt. Synthetic underlayment products have varying fastener requirements specified by the manufacturer. Some synthetic products permit staple attachment for the underlayment layer.
Self-adhering ice and water shield membranes (ASTM D1970) bond directly to the deck and do not require mechanical fasteners for attachment. The self-adhesion holds the membrane in place during shingle installation. Shingle nails then penetrate the membrane, and the modified bitumen compound seals around each nail shank.
Staples save a few cents per shingle but void your manufacturer warranty. On a $20,000 roof, that trade-off makes no sense.
How 1 Source Controls Fastener Quality
Every roof replacement that 1 Source Roofing performs follows a fastener quality protocol that exceeds the IRC baseline. We use the 6-nail pattern as standard, calibrate pneumatic nailers at multiple points throughout the day, and verify nail depth on every roof section before proceeding to the next.
Our Fastener Protocol
Step 1: Before the first shingle goes down, our crew leader calibrates each pneumatic nailer on a test piece of decking material matching the project deck. Step 2: The crew leader verifies nail depth on the first three courses of each roof plane. Step 3: At mid-morning, after ambient temperature increases, the crew recalibrates for the new conditions. Step 4: After lunch, recalibration again. Step 5: Our project manager spot-checks nail depth by lifting random shingle tabs across the completed sections. Step 6: We document any depth corrections in the project file.
Nail Specification
We use 12-gauge hot-dipped galvanized roofing nails with 3/8-inch heads. For new construction, 1.25-inch length. For reroofing applications (where permitted), 1.75-inch length. All nails comply with ASTM F1667 for driven fasteners. We source nails from the same supplier as our shingle materials to maintain consistency across the project.
For homeowners in Alpharetta, Buckhead, Sandy Springs, Johns Creek, Roswell, and Marietta, fastener quality is invisible but critical. You cannot see the nails under your shingles. But every nail affects the wind resistance, warranty eligibility, and service life of your roof system. The difference between a roof that survives a Georgia thunderstorm and one that loses shingles often comes down to two variables: nail count and nail depth.
Roof Fastener Code — Frequently Asked Questions
Common questions about Georgia's roofing fastener requirements, nail patterns, and pneumatic nailing standards.
What nail length does Georgia code require for roofing?
IRC R905.2.5 requires roofing nails to penetrate the roof deck by at least 3/4 inch. For new construction with standard plywood or OSB decking, a 1.25-inch nail satisfies this requirement. For reroofing over an existing shingle layer, a 1.75-inch nail is required to penetrate through the old layer and into the deck. The nail must be minimum 12-gauge with a 3/8-inch head diameter.
When does Georgia code require 6 nails per shingle instead of 4?
Six nails per shingle are required when the design wind speed exceeds 120 mph (coastal Georgia), when the manufacturer specifies 6 nails for the claimed wind resistance rating, or when the shingle is installed in edge, corner, or hip/ridge zones where the building official requires enhanced fastening. GAF requires 6 nails for Timberline HDZ shingles to achieve the 150 mph Class H wind rating.
Can staples be used instead of nails for shingles in Georgia?
The IRC permits staples for asphalt shingle attachment with restrictions: minimum 16-gauge wire, minimum 1-inch crown width, and the same deck penetration requirements as nails. However, most shingle manufacturers do not approve staple attachment for their warranty programs. GAF does not warranty shingles attached with staples. CertainTeed limits staple use to specific products. For warranty protection, nails are the required fastener.
What happens if a pneumatic nailer drives nails too deep?
An overdriven nail punches through the shingle mat and loses holding power. The nail head tears through the fiberglass reinforcement layer, reducing wind uplift resistance by 50 percent or more. Building inspectors in Fulton County and Gwinnett County check nail depth by lifting shingle tabs during final inspection. Consistent overdriving signals an improperly adjusted nailer and will fail the inspection.
