What Liquid-Applied Roofing Is and Where It Belongs on Georgia Homes
Liquid-applied roofing is a fluid coating that cures into a seamless, waterproof membrane after application to a roof surface. Unlike sheet membranes (TPO, EPDM, modified bitumen) that arrive in rolls and require seaming, liquid-applied systems create a monolithic barrier with no joints, seams, or laps to fail. The coating bonds directly to the substrate, conforming to every irregular shape, penetration, parapet, and transition detail without mechanical fasteners or adhesive.
On residential homes, liquid-applied roofing applies to specific areas: flat roof sections (porches, bump-outs, additions), low-slope transitions between roof levels, parapet walls and coping, and as a restoration coating over deteriorated existing low-slope roofing. Georgia homes in Buckhead, Sandy Springs, and Johns Creek often feature architectural flat sections integrated into otherwise steep-slope roof designs. These flat sections cannot receive asphalt shingles (which require minimum 2:12 slope) and need a low-slope solution.
Two primary chemistries dominate the residential liquid-applied market: acrylic (water-based) and silicone (solvent-based or moisture-cure). Each chemistry has distinct performance characteristics, application requirements, and ASTM standards. The IRC recognizes both under Section R905.15, provided the product meets the applicable standard and the installation follows the manufacturer's specifications.
The appeal of liquid-applied roofing in Georgia's climate extends beyond waterproofing. White and reflective liquid coatings deliver cool roof performance with solar reflectance values of 0.70 to 0.85, matching or exceeding the best sheet membrane products. For flat sections that bake under direct Georgia sun, the reflective coating reduces surface temperatures by 50 to 70°F compared to a dark built-up roof or aged modified bitumen.
IRC R905.15: Liquid-Applied Roofing Code Requirements
IRC Section R905.15 governs liquid-applied roofing installations. The section is brief but establishes the critical requirements that separate a code-compliant installation from a DIY paint job.
Minimum Slope
R905.15 sets the minimum roof slope at 0.25:12 (one-quarter inch of rise per foot of run). This is the lowest minimum slope in the IRC for any roof covering, reflecting the liquid membrane's ability to waterproof near-flat surfaces. The slope must provide positive drainage. Water must flow toward drains, scuppers, or roof edges. Ponding water (standing water that remains 48 hours after rain) degrades even the best liquid-applied membranes over time and voids most manufacturer warranties.
ASTM Standards
The code requires liquid-applied roofing products to conform to applicable ASTM standards. The two primary standards for residential applications are:
- ASTM D6083: Standard Specification for Liquid Applied Acrylic Coating Used in Roofing. Covers water-based acrylic latex coatings applied to roofing substrates as a waterproofing membrane.
- ASTM D6694: Standard Specification for Liquid-Applied Silicone Coating Used in Spray Polyurethane Foam Roofing Systems. Covers silicone coatings applied as protective and waterproofing coatings over spray foam and other substrates.
Additional ASTM standards apply to specific applications: ASTM D6947 covers liquid-applied moisture cure polyurethane coatings, and ASTM D6083 also addresses acrylic coatings used as restoration systems over existing roofing.
Manufacturer Installation Requirements
R905.15 requires installation per the manufacturer's published instructions. This encompasses substrate preparation, primer application, mil thickness per coat, number of coats, curing time between coats, reinforcement fabric requirements, and flashing details. The manufacturer's instructions carry the weight of code because the IRC defers to them for the specifics that vary between products.
"A liquid-applied roof is a code-recognized roof covering under IRC R905.15. It is not a temporary patch or a cosmetic coating."
Acrylic vs. Silicone: Two Chemistries, Different Strengths
The choice between acrylic and silicone coatings depends on the roof's exposure conditions, substrate type, ponding water risk, and budget. Both meet code requirements when installed correctly, but their performance profiles differ in ways that matter for Georgia roofs.
| Property | Acrylic (ASTM D6083) | Silicone (ASTM D6694) |
|---|---|---|
| Base Chemistry | Water-based acrylic latex | Silicone polymer (moisture cure or solvent) |
| Ponding Water Tolerance | Poor. Acrylic softens in standing water. | Excellent. Silicone resists ponding indefinitely. |
| UV Resistance | Good. Maintains color and reflectance. | Excellent. Superior long-term UV stability. |
| Solar Reflectance (Initial, White) | 0.80 – 0.85 | 0.80 – 0.88 |
| Dry Film Thickness (Typical) | 20 – 30 mils | 20 – 25 mils |
| Number of Coats | 2 – 3 coats | 1 – 2 coats |
| Application Temperature | 50°F+ and rising (no rain for 24 hrs) | 40°F+ (moisture-cure cures with humidity) |
| Dirt Pickup Resistance | Moderate. Surface can attract dirt over time. | Good. Silicone resists dirt embedment. |
| Cost per Square Foot (Material) | $0.75 – $1.50 | $1.50 – $3.00 |
| Lifespan (with maintenance) | 10 – 15 years | 15 – 20+ years |
For Georgia roofs, the ponding water question is decisive. Flat sections that pool water after rain need silicone. Acrylic coatings absorb water and blister when ponding occurs, which leads to premature failure in the ponding area. Silicone sits in water without degradation. If positive drainage is confirmed and no ponding occurs, acrylic provides excellent performance at lower cost.
The reflective properties of both chemistries qualify as cool roofing under ENERGY STAR criteria. A white silicone or acrylic coating on a flat roof section in Marietta or Roswell reflects 80+ percent of solar radiation, keeping the surface 50 to 70°F cooler than a dark membrane and reducing heat transfer to the living space below.
Substrate Preparation, Reinforcement, and Application Thickness
The substrate is the foundation of every liquid-applied roof. A coating applied over a contaminated, wet, or deteriorated substrate will fail regardless of product quality. Preparation is not optional. It is the most labor-intensive and most critical phase of the installation.
Substrate Preparation
- Cleaning: The substrate must be free of dirt, debris, grease, oil, loose material, and biological growth. Pressure washing at 2,500 to 3,000 PSI is the standard cleaning method for most substrates. The surface must dry before coating.
- Repair: Blisters, splits, punctures, and open seams in the existing membrane must be repaired before coating. Liquid-applied roofing bridges hairline cracks but does not bridge open seams or membrane separations.
- Moisture testing: Trapped moisture in the roof assembly causes blistering under the new coating. A moisture scan or core cuts verify the insulation and substrate are dry before application. Wet insulation sections must be replaced.
- Priming: Most manufacturers require a primer coat on specific substrates (concrete, metal, aged membranes) to ensure adhesion. The primer must cure before the first coating coat is applied.
Reinforcement Fabric
Manufacturers require polyester reinforcement fabric (also called scrim, mesh, or fleece) embedded in the base coat at all detail areas: penetrations, drains, inside corners, outside corners, parapet terminations, and transitions between different substrates. The fabric bridges stress points where movement, thermal cycling, or structural flex could crack an unreinforced coating. Some manufacturers require full-field fabric reinforcement for the entire roof area. Others require it only at details and transitions.
The fabric is embedded while the first coat is still wet. The installer rolls or brushes the coating, lays the fabric into the wet coating, and applies additional coating over the fabric to fully encapsulate it. No dry fabric should remain visible after encapsulation. Air bubbles under the fabric must be rolled out before the coating skins over.
Mil Thickness and Coat Requirements
Mil thickness is measured during application with a wet film gauge. The gauge has notched edges at calibrated depths. The installer presses the gauge into the wet coating to verify thickness meets the manufacturer's specification. Dry film thickness is approximately 50 percent of wet film thickness for water-based acrylics (water evaporates during cure) and 85 to 95 percent for silicones (minimal solvent loss).
A typical acrylic system requires two coats at 10 to 15 wet mils each, yielding 10 to 15 dry mils per coat and 20 to 30 total dry mils. A typical silicone system requires one or two coats at 20 to 25 wet mils, yielding 18 to 24 dry mils. The second coat must be applied in a direction perpendicular to the first (crosshatch pattern) to ensure even coverage and eliminate thin spots.
Where Liquid-Applied Roofing Applies on Georgia Residential Homes
Liquid-applied roofing is not a replacement for asphalt shingles on steep-slope roofs. It serves specific, high-value applications on residential homes where conventional shingle systems do not work or where a seamless membrane provides superior performance.
Flat Porch and Addition Roofs
Many homes in Buckhead and Alpharetta have flat or low-slope porch roofs, sunroom roofs, or addition roofs that connect to the main steep-slope roof. These sections typically carry modified bitumen or built-up roofing. When the existing membrane deteriorates, a liquid-applied coating restores waterproofing without tear-off. The seamless membrane wraps over parapet transitions and up wall terminations where leaks most often originate.
Parapet Walls and Coping
Parapet walls on flat roof sections are chronic leak points. The intersection of the horizontal roof and the vertical wall creates a 90-degree angle where thermal movement, settling, and moisture drive sealant failure. Liquid-applied coatings with embedded reinforcement fabric bridge this angle and create a continuous waterproof membrane from the roof field up the parapet face. The system flexes with the building instead of cracking at the junction.
Restoration Over Existing Low-Slope Roofing
When the existing low-slope membrane has reached the end of its service life but the substrate and insulation beneath are sound, a liquid-applied restoration coating extends the roof's life by 10 to 20 years without tear-off. This approach eliminates landfill waste, reduces project cost by 40 to 60 percent compared to full replacement, and adds a reflective surface that reduces cooling loads. The coating must bond to the existing membrane, which requires compatibility testing and proper preparation.
As Part of a Comprehensive Roof Replacement

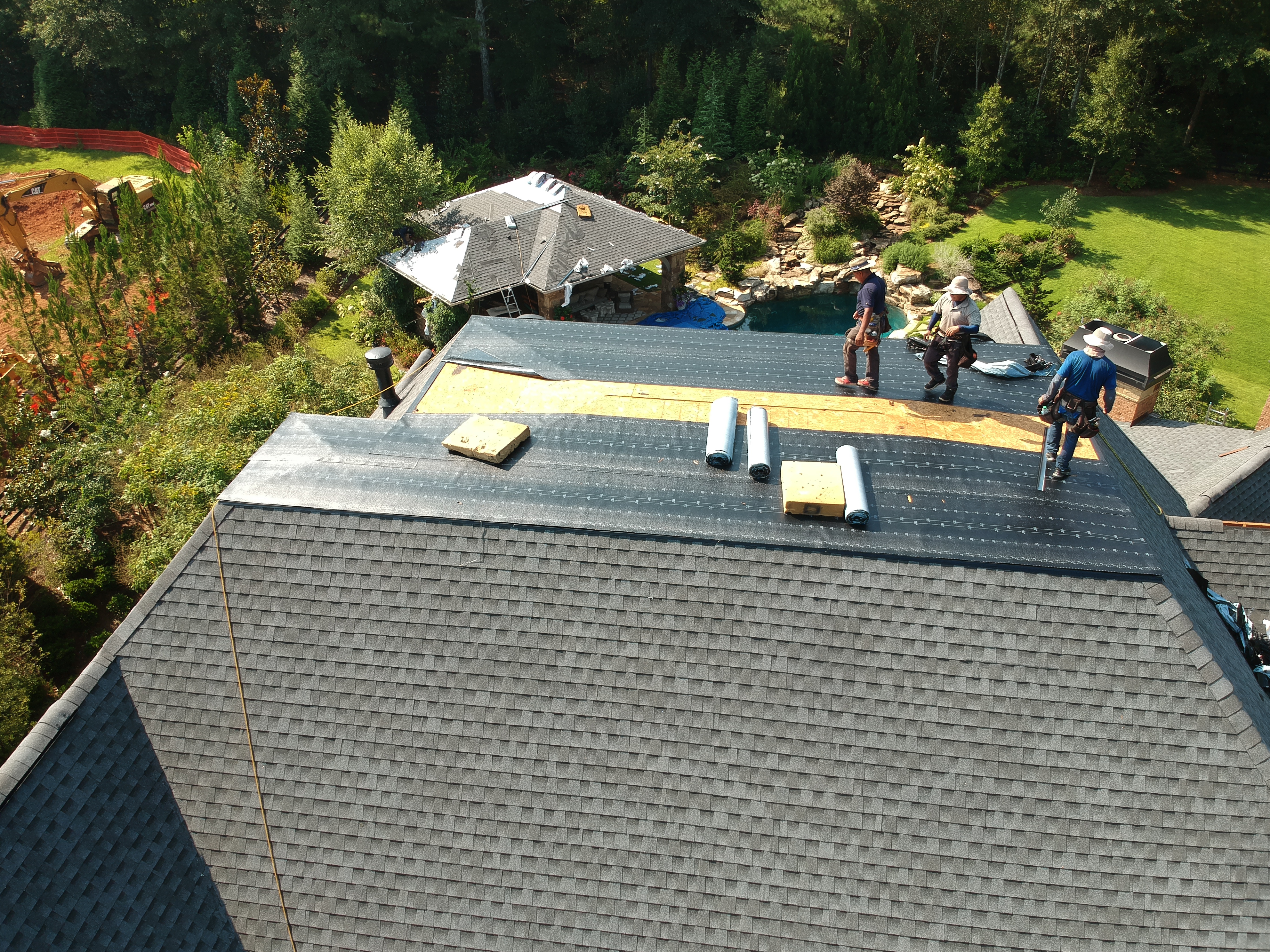

When we replace the steep-slope shingles on a home that also has flat sections, we address both areas in the same project. The steep-slope areas get new shingles, underlayment, and drip edge. The flat sections get the appropriate low-slope solution: liquid-applied coating if the existing substrate is sound, or a new membrane system if the deck or insulation needs replacement. Coordinating both scopes in one project eliminates transition issues between the two roof systems.
"A 30-square flat roof restoration using silicone coating over sound existing membrane runs $8,000 to $12,000. Full tear-off and replacement of the same area runs $18,000 to $30,000. The coating adds 10 to 20 years of service life."
Reflective Coating Benefits for Georgia's Climate
White liquid-applied coatings deliver some of the highest solar reflectance values available in any roofing product. A white silicone or acrylic coating reflects 80 to 88 percent of incoming solar radiation, compared to 5 to 15 percent for a dark built-up roof or aged modified bitumen. That reflectance difference translates to surface temperature reductions of 50 to 70°F under peak Georgia sun.
For flat roof sections that sit directly above living space (as opposed to over an attic), the temperature reduction is critical. A dark flat roof at 175°F with R-20 insulation below it drives significant heat into the room beneath. A white-coated flat roof at 110°F with the same insulation reduces heat transfer by 40 to 50 percent. The occupants feel the difference in comfort, and the HVAC system reflects it in runtime.
Liquid-applied coatings maintain their reflectance longer than most other reflective products because the surface can be cleaned and recoated. After 10 to 15 years, a maintenance coat (a single thin coat applied over the existing system) restores reflectance to near-original levels and extends the membrane life by another 5 to 10 years. No other roofing system offers this renewable performance cycle.
The combination of cool roof performance, seamless waterproofing, and renewable service life makes liquid-applied coatings the preferred solution for flat roof sections on premium homes across metro Atlanta. Paired with radiant barriers, proper air sealing, and adequate ventilation, a reflective liquid-applied coating on flat sections completes the thermal envelope strategy.
Frequently Asked Questions About Liquid-Applied Roofing Code in Georgia
What is the minimum slope for liquid-applied roofing under Georgia code?
IRC R905.15 sets the minimum slope for liquid-applied roofing at 0.25:12 (1/4 inch of rise per 12 inches of run). This is one of the lowest minimum slopes permitted for any roofing material, making liquid-applied systems ideal for flat and near-flat roof sections. The slope must still provide positive drainage. Ponding water on a liquid-applied roof degrades the membrane over time regardless of the coating chemistry.
Can liquid-applied roofing go over existing shingles?
Liquid-applied roofing is not designed to go over asphalt shingles on steep-slope roofs. It is designed for flat and low-slope substrates including built-up roofing, modified bitumen, single-ply membranes, metal, and concrete. On residential homes, liquid-applied systems apply to flat roof sections, porch roofs, parapets, and as restoration coatings over existing low-slope roofing. Steep-slope sections with shingles require conventional shingle replacement.
How thick does a liquid-applied roof coating need to be?
Total dry film thickness depends on the product and application. ASTM D6083 acrylic systems typically require 20 to 30 mils (0.020 to 0.030 inches) of dry film thickness applied in two or more coats. ASTM D6694 silicone systems require 20 to 25 mils minimum. The manufacturer's specifications dictate the exact mil thickness for warranty coverage. Each coat must cure before the next coat is applied, and the total thickness must be verified with a wet film gauge during installation.
Is liquid-applied roofing a code-compliant alternative to full reroof?
Liquid-applied roofing qualifies as a roof covering under IRC R905.15 when the product meets the applicable ASTM standard, the substrate is structurally sound, and the installation follows the manufacturer's specifications. For flat and low-slope sections, a liquid-applied system can restore a deteriorated roof without tear-off, provided the existing roof assembly is not trapping moisture or hiding structural damage. The local building department determines whether a permit is required and whether the application qualifies as a repair or a re-roofing project.
